All cables are made to order — because of this, any and all custom cable orders are non-cancellable and non-returnable once the checkout process has completed.

All cable orders carry a lead time of up to two weeks for most assemblies, but are subject to extended lead times without notice. Orders cannot be cancelled due to the duration of their lead time, it is strongly suggested to send an email for lead time inquiries if you need a cable by a particular time or date.

All cable assemblies use genuine components and high quality wire. Cables are assembled in California.

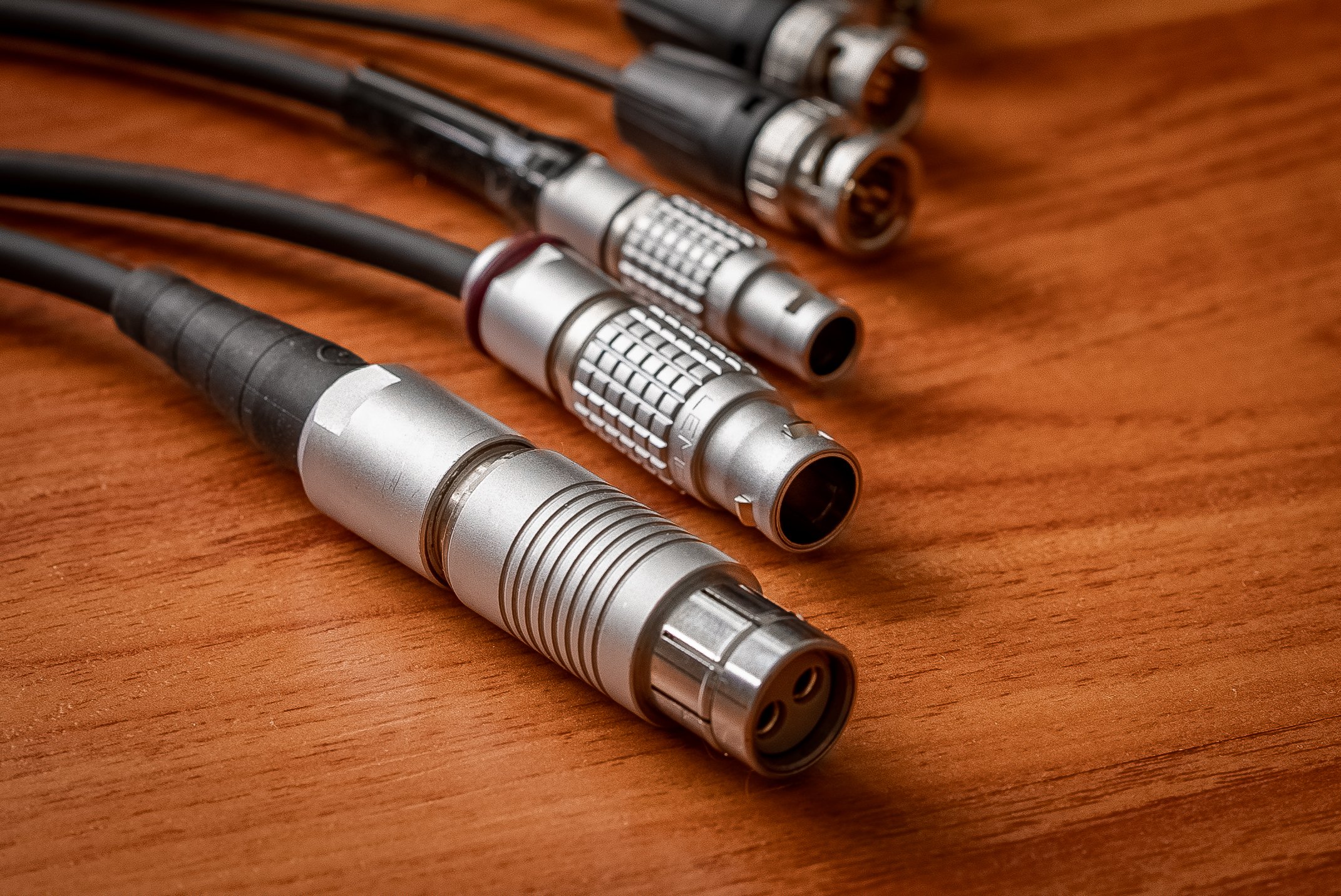

Output Connectors

These power output connectors compatible with, but not limited to, the cameras detailed below:

• ALEXA / AMIRA — 8-pin 2B Lemo connectors are compatible with ARRI digital cameras such as the ALEXA 35, ALEXA Mini LF, ALEXA Mini, and AMIRA.

• ARRICAM / ALEXA — 2-pin 105 Fischer connectors are compatible with ARRICAM 416 and 435 cameras as well as studio-sized ARRI digital cameras (ALEXA LF, SXT, Classic, etc.).

• RED DSMC — 6-pin (4+2) 1B Lemo connectors are compatible with RED DSMC, DSMC2, and V-Raptor 8K (non-XL) cameras.

• 12V 4-pin Neutrik XLR connectors are compatible with Sony Venice 1 / 2. The cameras can display a low voltage warning when operating at 12V, many choose to use 24V power for the camera to avoid this.

Notes

• ARRI Trinity / MAXIMA cables can deliver both 12V/24V based on the power supplied to the rig.

• 4-pin XLR connectors are wired pin-1 GND, pin-4 VDC by default.
